Build your own

Features & Specs

Car specifications

Exterior dimensions

Number Of Doors
5
Length (mm)
4753 mm
Width (mm)
1848 mm
Height (mm)
1880 mm
Wheelbase (mm)
2975 mm

Luggage compartment

Loading Length w/o Smart Cargo (mm)
2167 mm
Loading Length w/ Smart Cargo (mm)
3440 mm
Load Volume w/o Smart Cargo (m³)
3.9 m³
Load Volume w/ Smart Cargo (m³)
4.4 m³

Off Road

Minimum Running Ground Clearance (mm)
160 mm

Environmental Performance

Fuel Combined WLTP (l/100 km)
0 l/100 km
CO2 Combined WLTP (g/km)
0 g/km
Electric Consumption (kWh/100km)
19.1 kWh/100km
Electric Consumption (Wh/km)
191 Wh/km
Euro Class emission
Ax
Euro Class
Ax
Sound Level Drive By (dB(A))
66.0 dB(A)

Engine

Battery Energy (kWh)
50.57 kWh
Electric Rear Motor: Maximum Output (kW)
100 kw
Electric Rear Motor: Maximum Torque (Nm)
270 Nm
Maximum Output (kW@rpm)
100/ kW@rpm
Electric Front Motor: Type
ZAE synchronous with permanent magnet / 4 pairs
Maximum output (DIN hp)
136 DIN hp
Conventional engine output (DIN hp)
136 DIN hp
Electric Front Motor: Maximum Torque (Nm)
270 Nm
Electric Front Motor: Maximum Voltage (V)
418 v
Hybrid Vehicle Battery: Type
LFP/Gr
Hybrid Vehicle Battery: Voltage (nominal) (V)
220 v
Hybrid Vehicle Battery: Number Of Modules
4
Hybrid Vehicle Battery: Capacity Ah (hr)
147 Ah

Transmission

Transmission Type
Automatic

Performance

Maximum Speed (km/h)
132 km/h

Suspension

Suspension Front
Pseudo Mac Pherson
Suspension Rear
Deformable crossbeam

Brakes

Brakes Front
Ventilated Disc
Brakes Rear
Disc

Weights & towing capacity

Gross Vehicle Weight (kg)
2450 kg
Kerb Weight (kg)
1759-1884 kg
Towing Capacity With Brakes (kg)
750 kg
Towing Capacity Without Brakes (kg)
750 kg
Payload (kg)
800 kg
Kerb weight min (kg)
1759 kg

Interior dimensions

Number Of Seats
3 seats

Multimedia

Interior

Digital Audio Broadcast (DAB)
4 speakers
Radio player
5" touch screen display
Front USB Type-C device charger
USB Type-A connector
Smartphone voice recognition on multimedia system

Wheels

Exterior

16" steel wheels
Full spare wheel

Comfort

Exterior

Dusk sensor
Power-adjustable door mirrors
Heated door mirrors
Two sliding side doors
Remote door lock
Manually retractable door mirrors
Rear swing doors with glass windows
Panel (without side windows on 3rd row)
Panel (without side windows)

Interior

Manual day/night rear-view mirror
Manual air conditioning
Pollen air filter
Driver armrest
2-seater front passenger bench
Manually height-adjustable driver seat
Manually adjustable lumbar support on driver seat
Rear window defogger
Front room lamp
Boot lamp (bulb type)
Power door lock
Monochrome LCD information display
Audio switches on steering wheel
Lane Departure Alert switch on lower driver dashboard
Speed Limiter Information
Driver & front passenger personal lamps
Auto up and down power window driver
Auto up and down power window passenger
Manually sliding front passenger seat

Safety

Exterior

Automatic High Beam (AHB)
Daytime running lights (bulb type)
Rear parking sensors
Adjustable Speed Limiter (ASL)
Road Sign Assist (RSA)
Cruise Control
Downhill Assist Control (DAC)
Hill-start Assist Control (HAC)
Tyre Pressure Warning System (TPWS)
Intrusion alarm
Glass-breaking alarm sensors
Immobiliser
Motion sensor alarm
Pre-Collision System with Pedestrian Detection
Lane Departure Alert with Steering Control
eCall emergency call system
Anti-tamper alarm
Driver Attention Alert
EcoLED headlamps

Interior

Supplemental Restraint System (SRS) airbags - 6 airbags
Panel bulkhead with window

Performance

Exterior

800 kg payload

Interior

Electronic parking brake

Transport

Interior

Smart Cargo
Carpet floor trim
Inner load-hooks on cargo deck (6)
Overhead storage
In-floor storage box
Closed upper passenger dashboard storage compartment
Closed upper driver dashboard storage compartment
Mobile office

Protection

Exterior

Black protection moulding on side doors

Interior

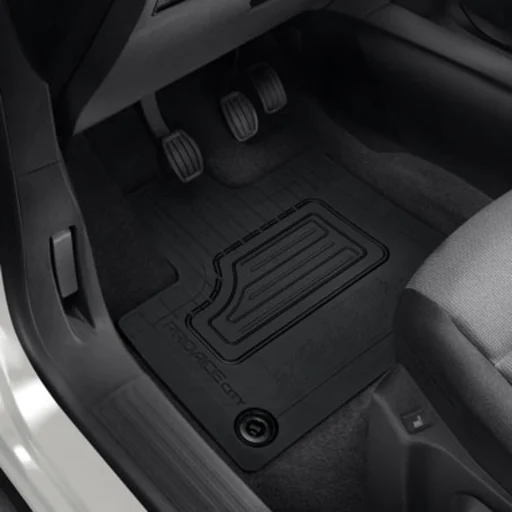

PVC floor mats

Styling

Exterior

Black front bumper
Black rear bumper
Black door mirrors
Black door handles
Smoke tinted (30%) privacy glass on rear windows
Short antenna

Interior

4-spoke urethane steering wheel
Open tray on passenger dashboard
Black interior door handles

Dimensions

Number Of Doors 5
Length (mm) 4753 mm
Width (mm) 1848 mm
Height (mm) 1880 mm
Wheelbase (mm) 2975 mm

Number Of Seats 3 seats

Loading Length w/o Smart Cargo (mm) 2167 mm
Loading Length w/ Smart Cargo (mm) 3440 mm
Load Volume w/o Smart Cargo (m³) 3.9 m³
Load Volume w/ Smart Cargo (m³) 4.4 m³

Read timed out

POST https://dxp-webcarconfig.toyota-europe.com/v1/equipment-standard/cy/en?modelId=c9fe38ba-7298-4411-b85e-996dc0c9e6d1&carId=93bcf24e-3e2c-4095-b7ec-605532060527&carColourId=6db1c2bf-4b7f-47e4-980f-7c5996733b36

Read timed out

POST https://dxp-webcarconfig.toyota-europe.com/v1/equipment-optional/cy/en?modelId=c9fe38ba-7298-4411-b85e-996dc0c9e6d1&carId=93bcf24e-3e2c-4095-b7ec-605532060527&carColourId=6db1c2bf-4b7f-47e4-980f-7c5996733b36

Safety

Feel safe and secure with Toyota safety sense

Toyota Safety Sense is a suite of driver assistance technologies that help with everything from detecting potential collisions to monitoring road signs, to keep you safe.

Airbags are positioned throughout the cabin

Seven SRS airbags are installed throughout the vehicle's interior, ensuring that In the event of a collision, every occupant of the car is well protected.

Technology

Multimedia - a wealth of multimedia possibilities

With voice activation and touch screen technology Proace City offers the latest in multimedia and connectivity. More than just audio, its 8" screen delivers an intuitive and engaging experience that allows you to access smartphone features including MirrorLink®, Apple CarPlay with Siri assist, Android Auto™ with Google assistant and Bluetooth®.
