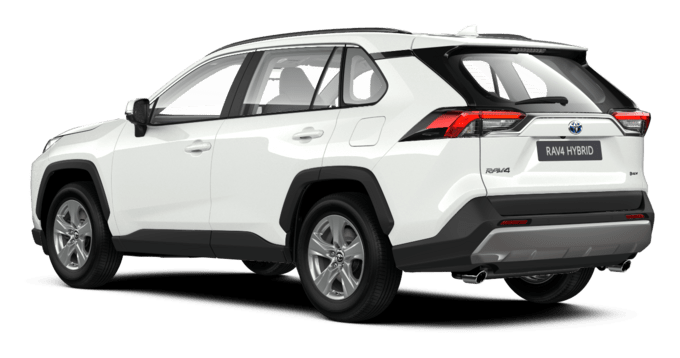

RAV4 Active
MPV 5 Doors (LWB)

Starting from
€40,300
Financing From
Financing Details
- 17" light silver alloy wheels (5-spoke)
- LED rear light guide
- Dusk sensor
WLTP
Fuel WLTP
5.7 l/100 km
CO2 WLTP
128 g/km
Wheel drive
AWD
Standard Engine
2.5 Petrol Hybrid Dynamic Force
Power
222 DIN hp

Pure White (040)
POST https://dxp-webcarconfig.toyota-europe.com/v1/compare-v2/cy/en
Car specifications
-
Length (mm)
4600 mm
-
Width (mm)
1855 mm
-
Height (mm)
1685 mm
-
Wheelbase (mm)
2690 mm
-
Front Tread (mm)
1610 mm
-
Rear Tread (mm)
1640 mm
-
Luggage Compartment Height (Up To Roof) (mm)
931 mm
-
VDA luggage capacity, rear seat up (litres)
580 liters
-
Minimum Running Ground Clearance (mm)
190 mm
-
Departure Angle (°)
20 °
-
Climbing Angle (°)
18 °
-
Ramp Break-Over Angle (°)
15.5 °
-
Wading Depth (mm)
500 mm
-
Fuel Combined WLTP (l/100 km)
5.7 l/100 km
-
CO2 Combined WLTP (g/km)
128 g/km
-
Fuel type
Petrol
-
Combined (l/100km)
4.8 l/100 km
-
Euro Class emission
Euro 6 AP
-
Fuel Grade - Recommended
95 or more (octane)
-
Euro Class
Euro 6 AP
-
Fuel Tank Capacity (l)
55 l
-
Sound Level Stationary (dB(A))
69.0 dB(A)
-
Sound Level Drive By (dB(A))
69.0 dB(A)
-
Valve mechanism
16-Valve DOHC, VVT-iE (intake), VVT-i (Exhaust)
-
Fuel Injection System
Fuel injection
-
Displacement (cc)
2487 ccm
-
Maximum Output (kW@rpm)
163 kW@rpm
-
Maximum Torque (Nm@rpm)
221/3600-5200 Nm@rpm
-
Maximum output (DIN hp)
222 DIN hp
-
Electric Front Motor: Maximum Output (kW)
88 kw
-
Electric Front Motor: Maximum Torque (Nm)
202 Nm
-
Electric Front Motor: Maximum Voltage (V)
650 v
-
Hybrid Vehicle Battery: Type
Lithium-ion
-
Hybrid Vehicle Battery: Voltage (nominal) (V)
244.8 v
-
Hybrid Vehicle Battery: Number Of Modules
34
-
Hybrid Vehicle Battery: Capacity Ah (hr)
4.3 Ah
-
Gearbox
e-CVT
-
Transmission Type
Cvt
-
Maximum Speed (km/h)
180 km/h
-
Acceleration 0-100 km/h (secs)
8.1 seconds
-
Drag Coefficient
0.32
-
Suspension Front
Macpherson strut
-
Suspension Rear
Double wishbone
-
Brakes Front
Ventilated Disc 2-Cylinder
-
Brakes Rear
Ventilated Disc 1-Cylinder
-
Wheel Size
225/65r17 102h 17x7j et35
-
Gross Vehicle Weight (kg)
2215 kg
-
Kerb Weight (kg)
1645-1725 kg
-
Towing Capacity With Brakes (kg)
1650 kg
-
Towing Capacity Without Brakes (kg)
750 kg
-
Kerb weight min (kg)
1645 kg
-
Number Of Seats
5 seats
-
Minimum Turning Radius (m)
5.5 m
Interior
-
Bluetooth® hands-free system
-
Digital Audio Broadcast (DAB+)
-
6 speakers
-
Voice recognition
-
10.5" multimedia display
-
Cloud Navigation
-
MyT Connected Services
-
Smart voice assist
-
Smartphone Integration (wireless Apple CarPlay and wired Android Auto™)
-
Toyota Smart Connect
-
USB Type-A and USB Type-C connectors
Exterior
-
Temporary spare wheel
-
17" light silver alloy wheels (5-spoke)
Exterior
-
Follow-me-home headlights
-
Dusk sensor
-
Rain sensor
-
Boot door release with push button
-
Power boot
-
Remote boot door release on key
-
Remote boot door release in cabin
-
Power-adjustable door mirrors
-
Heated door mirrors
-
Automatically retractable door mirrors
-
Smart Entry & Start System
-
Smartphone remote door lock
-
Smartphone remote door lock notifications
-
Smartphone remote hazard lights notifications
-
Smartphone remote hazard lights system
-
Smartphone remote open window notifications
Interior
-
Push-button start
-
Manual telescopic steering wheel
-
Manual tilting steering wheel
-
Digital speedometer
-
Analogue tachometer
-
Electric Power Steering (EPS)
-
Electrochromatic rear-view mirror
-
Rear-view camera display in audio screen
-
Dynamic guide lines on rear-view camera display
-
Dual-zone automatic air conditioning
-
Pollen air filter
-
Clean air filter
-
Rear passenger air vents
-
Central armrest
-
Manually height-adjustable driver seat
-
Rear door armrests
-
Reclining rear seats
-
60:40 split-folding rear seats
-
Toyota Easy Flat system
-
Front power windows
-
Rear power windows
-
One touch auto up & down function on all power windows
-
Anti-jam protection on power windows
-
Illuminated entry system
-
Lamp on driver sun visor
-
Lamp on passenger sun visor
-
Mirror on driver sun visor
-
Mirror on passenger sun visor
-
Front 12V power outlet (2)
-
Boot 12V power outlet
-
Power door lock
-
Speed-detecting automatic door lock
-
Child safety door lock
-
Key reminder warning
-
Coloured TFT information display
-
7" screen for information display
-
ECO-driving Indicator
-
Hybrid System Indicator
-
Audio switches on steering wheel
-
Information display switches on steering wheel
-
Telephone switch on steering wheel
-
Voice recognition switch on steering wheel
-
Adaptive Cruise Control switch on steering wheel
-
Lane Departure Alert switch on steering wheel
-
Adjustable Speed Limiter (ASL) switch on steering wheel
-
Automatic High Beam (AHB) on/off switch
-
Front overhead assist grips
-
Rear overhead assist grips
-
Boot lamp (LED)
-
Centre room lamp (LED)
-
Driver & front passenger personal lamps (LED)
-
Remote air conditioning system
Exterior
-
Adjustable Speed Limiter (ASL)
-
Brake Assist (BA)
-
Emergency Brake-light Signal (EBS)
-
Anti-lock Braking System (ABS) with Electronic Brake force Distribution (EBD)
-
High-mounted stop lamp (LED)
-
LED rear brake lights
-
Vehicle Stability Control (VSC)
-
Rear combination lamps (LED)
-
Automatic headlamp levelling
-
Daytime running lights (LED)
-
Turning signal (bulb)
-
Turning signal integrated in door mirrors
-
Memory on speed limiter
-
Full-range Adaptive Cruise Control
-
Intelligent Adaptive Cruise Control
-
Front parking sensors
-
Rear parking sensors
-
Rear-view camera
-
Immobiliser
-
Hill-start Assist Control (HAC)
-
Pre-Collision System with Pedestrian and Cyclist Detection
-
Driver Attention Alert
-
Lane Departure Alert with Steering Control
-
Lane Trace Assist (LTA)
-
Road Sign Assist (RSA)
-
eCall emergency call system
-
Tyre Pressure Warning System (TPWS)
-
Trailer Sway Control (TSC)
-
Automatic High Beam (AHB)
-
Front fog lamps (LED)
-
Multi-reflector LED headlamps
-
Road Events
Interior
-
Supplemental Restraint System (SRS) airbags - 7 airbags
-
Front passenger airbag detector
-
Front passenger airbag on/off-switch
-
Front seat belt reminder
-
Adjustable front driver seat belt extender
-
Adjustable front passenger seat belt extender
-
Pre-tensioners and force limiters
-
Driver & front passenger Whiplash Injury Lessening (WIL) seats
-
ISOFIX seat fixing
-
Rear seat belt reminder
-
Rear headrests (3)
-
Rear seat reminder system (RSRS)
Exterior
-
Drive mode selector
-
Dual exhaust pipes
-
Rear spoiler
Interior
-
Electronic parking brake
Exterior
-
Attitude Black roof rails
Interior
-
Single compartment glovebox
-
Lockable glovebox
-
Front bottle holders
-
Rear bottle holders
-
1.5 litre bottle holder
-
Front cup holders
-
Rear cup holders
-
Rear passenger coat hooks (2)
-
Sunglasses holder
-
Passenger-only seatback pocket
-
Rear console box
-
Retractable tonneau cover
-
Dual-level deckboard
-
Double-sided boot floor (carpet & plastic)
Exterior
-
Black protection moulding on side doors
Interior
-
Driver & front passenger floor mats
-
Floor mats
Exterior
-
Dark grey painted upper front grille
-
Meshed upper front grille
-
LED front light guide
-
Black surrounds on front fog lamps
-
Silver front under-run
-
LED rear light guide
-
Silver rear under-run
-
Body-coloured rear spoiler
-
Silver insert on boot door
-
Body-coloured door mirrors
-
Body-coloured door handles
-
Body-coloured roof
-
Shark-fin antenna
-
Body-coloured shark-fin antenna
-
Hybrid engine badge
Interior
-
Soft-touch texture on upper dashboard
-
Silver insert on upper dashboard
-
Soft-touch texture on lower dashboard
-
Silver surround on analogue tachometer
-
Silver surround on Hybrid System Indicator
-
3-spoke leather steering wheel
-
Chrome insert on steering wheel
-
Piano black centre console
-
Chrome insert on centre air vents
-
Chrome insert on side air vents
-
Leather gear shift knob
-
Chrome gear shift knob surround
-
Silver surround on gear shift console
-
Leather-like front door trim
-
Leather-like front door armrests
-
Silver insert on front door assist grips
-
Satin chrome interior door handles
-
Grey roof lining
-
Soft-touch rear door trim
-
Rear armrest
-
Open tray on passenger dashboard
-
Black centre air vents
-
Black lower driver dashboard
-
Black lower passenger dashboard
-
Black upper dashboard
-
Illuminated power window switches
-
Piano black insert on centre console
-
Piano black surround on multimedia display screen
-
White ambient foot lamp
-
White lighting on tachometer
Read timed out
POST https://dxp-webcarconfig.toyota-europe.com/v1/equipment-standard/cy/en?modelId=a68a58fb-a10e-41ae-9459-3a7c4060500f&carId=537303c6-1c38-4a78-b1d2-12d071ff5679&carColourId=b4da34a1-391c-4b57-a153-13ac02e8da7f
Optional equipment
Customize€650
ProTect preserves the residual value of your Toyota and keeps it looking its best. Originally developed by NASA, this high-tech protective shield creates a ceramic hard finish over exterior paintwork and alloy wheels. Once applied by your retailer, ProTect repels dirt, dust, sand, traffic grime and UV rays for up to 5 years. Easy to maintain, ProTect will not interfere with your usual Toyota valet schedule: simply wash your car as normal. Please ask your retailer for full details.
€470
€320
€530
